Shrink and Pad Wrapper

1. Product Overview

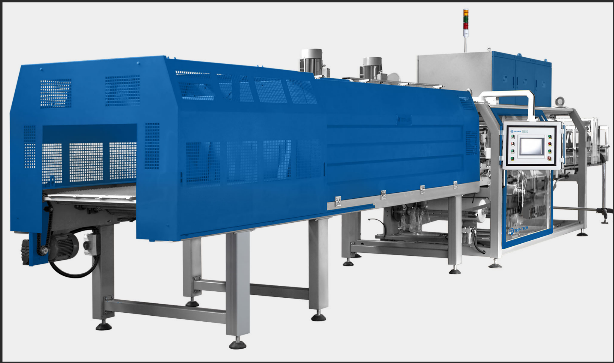

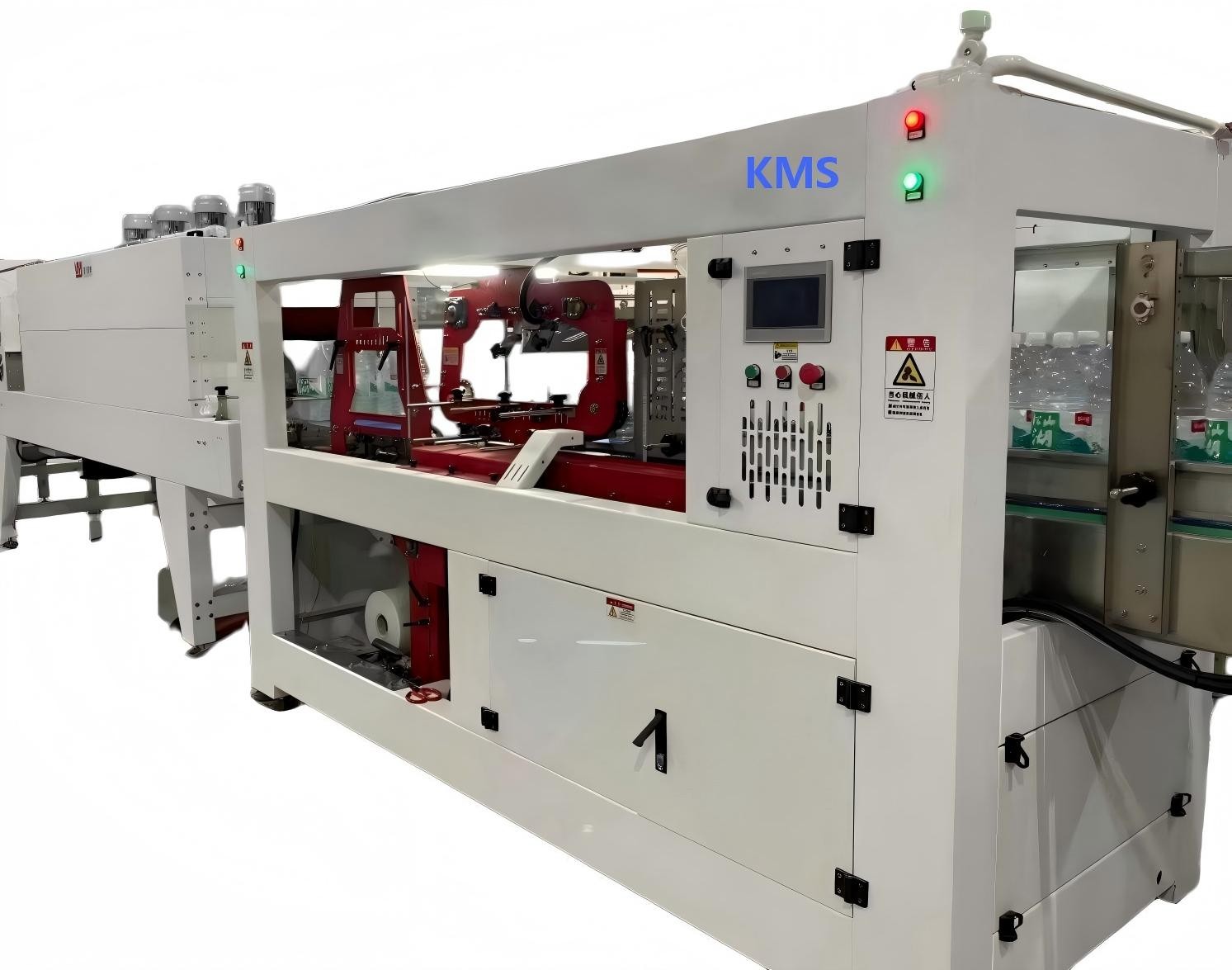

KMS shrink wrapper is full-automatic heat shrink packaging equipment adopting advanced multi-servo control system, driven by Siemens servo motors for high automation and stable operation.

We provide two mainstream packaging modes: Pure Film Only and Half Tray / Cardboard Pad, which can be quickly switched on one machine to satisfy diversified market packaging demands.

The machine perfectly matches front-end filling, blowing and capping equipment, forming a complete post-packaging solution for beverage production lines.

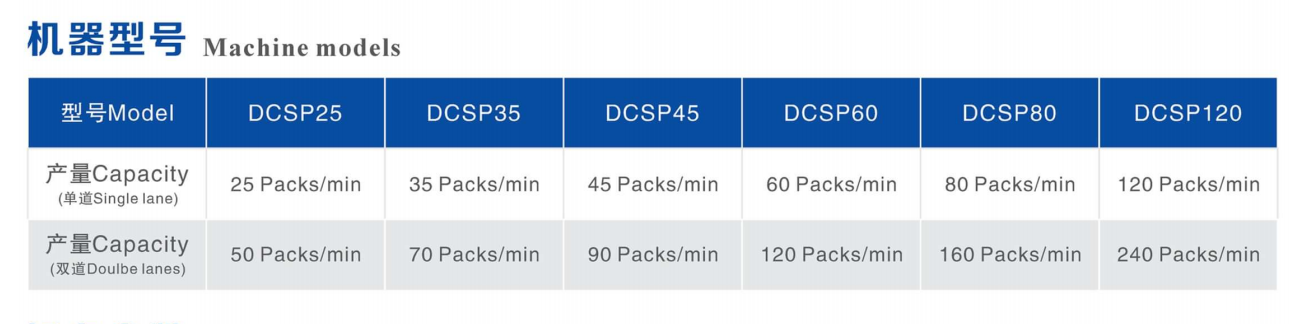

2. Machine Models

        Pure Film Shrink Wrapper Series

        Half Tray / Cardboard Pad Shrink Wrapper Series

4. Machine Key Features

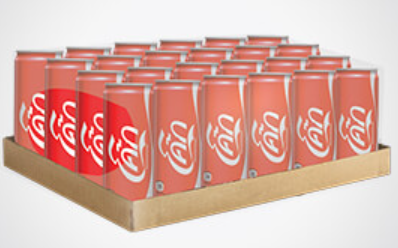

1. Dual packaging mode switchable: support pure film small package (2×2,2×3) and half-tray large package (3×4,4×6)

2. Intelligent film storage monitoring system: auto alarm when film runs low to avoid production stop

3. Constant temperature auto-control shrink tunnel, circulating air design for uniform heating

4. Compatible with transparent PE film & printed color film, packaging surface with fewer wrinkles, smooth bottom overlap, neat shrink holes

5. Full servo positioning, easy size adjustment, fast bottle type changeover without complicated calibration

6. Complete safety protection doors & safety interlock devices for operator safety

7. Optional accessories: printed film register device, auto film splicing device, film trolley, anti-static bars




5. Application Range

Widely used for secondary packaging of bottled water, carbonated drinks, fruit juice, beer, dairy products, edible condiments, daily chemicals and food.Suitable for PET bottles, glass bottles, aluminum cans with pure film wrapping or cardboard pad/half tray integrated film packaging, perfectly matched with KMS full set beverage production line.
